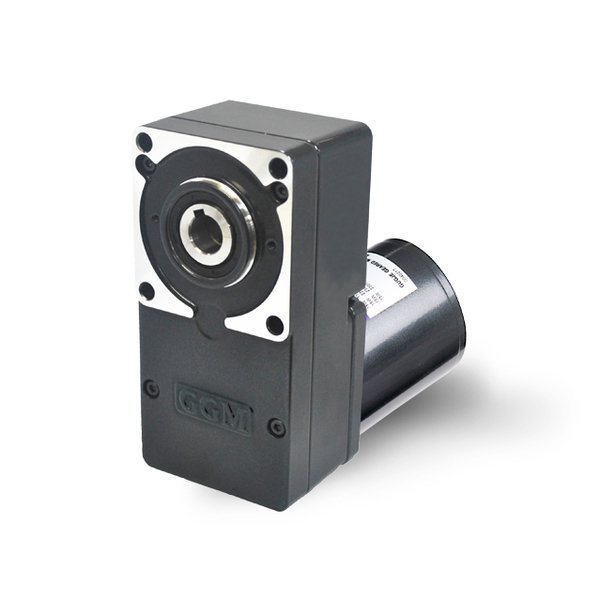

Flat AC Induction Geared Motors GGM K9-BTH Series

Flat AC induction compact and silent, matchable to heavy loads, geared motors 230V single phase or 230/380V three phase. 7rpm out up, 40-200W output power, flange 80x80mm.

Key features:

• Induction technology requiring a capacitor (single phase only, included).
• Direction CW or CCW according to the wiring.
• Continous duty up to 40°C ambient.
• Embedded fan for 60W/200W items.
• Spur gearboxes on ball bearings.
• Hollow (D=20mm with keyway) or optional solid shaft. Exit with 30cm cables or via IP54 terminal box.
• Thermal protection.

Also available in the variants “quick reversible”, with brake and variable speed with dedicated controllers.

For further information read the datasheets. For expert advice contact us by filling in the below form, by email at info@softingitalia.it or by phone at +39 02 4505171
