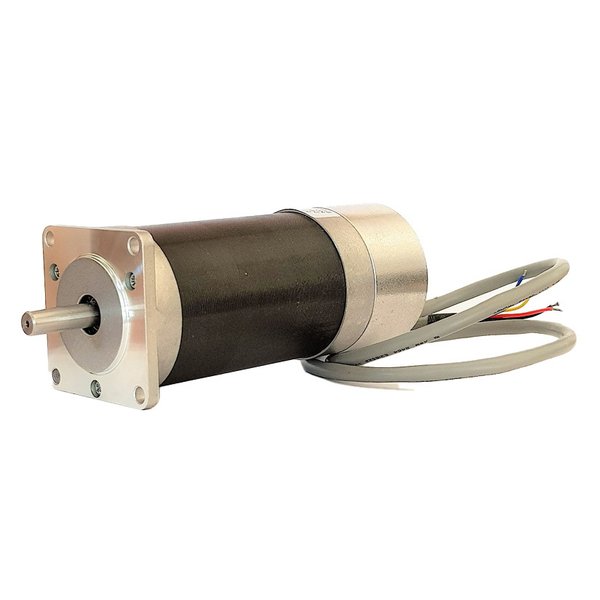

Integrated BLDC motors Hetai 57BL-ID series

Range of Brushless DC (BLDC) motors with 57mm flange (square or round) and on board control electronics.

Key Features:

  • Rated Voltage: 24Vdc and 12Vdc
  • Output Power: from 15W to 100W
  • Rated Speed: 3000rpm
  • Rated Torque: from 0,057Nm to 0,33Nm
  • Shaft: D=8mm with flat
  • Speed reference: 0-5V analog
  • Optional planetary gearbox
  • Typical applications: variable speed with little dynamics

The 4-wire interface foresees a wiring configuration to make the motor run at full speed without any external controller intervention

For further information read the datasheet. For expert advice contact us by filling in the below form, by email at info@softingitalia.it or by phone at +39 02 4505171
